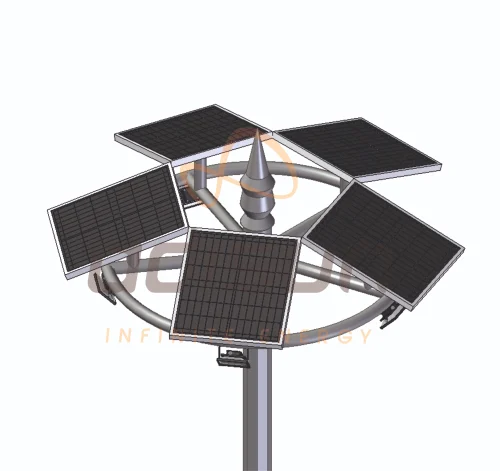

Solar HI Mast Light
The Solar HI Mast Light is designed for both industrial and residential outdoor applications, providing efficient and reliable lighting solutions.
| Specification | Details |
|---|---|
| Usage/Application | Industrial and Residential |
| Type | HI Mast |
| Brand | Adisun |
| Load Power | 20W |
| Suitable For | Outdoor Garden Applications |
| Lighting Type | LED |
| Solar Power | 80 wp |
| Power Source | Solar, Sun Light |
| IP Rating | IP66 |
| Certification | MNRE |
| Body Material | Aluminium Die Casting |
| Lighting Color | White |
| Finishing | GI |
| Mounting Type | Octagonal Pole |
| Battery | 24V-150Ah Lithium ion (Li-ion) |
| LED Lumens | 5 Nos |
| Bulb Type | LED |
| Pole Height | 6 mtr Octagonal Pole |
| Dimension | Top 70mm x Base 130mm x Height 6mtr |
| Efficiency | > 92 % |
| Panel Capacity | 12V-100wp |
| Solar Module | 80wp Poly-crystalline |
| Warranty | 5 Years |
| Number Of LEDs | 5 |
| Overcharge Protection | Yes |
| Country of Origin | Made in India |
Structural Details
The structure is suitable for wind speed as per IS 875 Part III 2015 and PLG 07. The mast is fabricated from special steel plates, conforming to ASTM A 572/BS EN 10025. The welding is in accordance with the American Welding Society (AWS). The entire mast is single hot-dip galvanized, internally and externally as per ASTM A123 and A153. The top and bottom diameters and plate thickness of the mast are designed as per EN 40.
Additional Information
| Item Code | Production Capacity | Delivery Time |
|---|---|---|
| ADSHM-100-300-400 | 20 | 7 Days |
